Introduction
The Cummins KTA38 and KTA50 engines are known for their reliability, power, and durability. However, like any high-performance diesel engine, they can experience operational issues that need immediate attention. Identifying symptoms early and applying the correct troubleshooting methods can prevent costly downtime and extend engine life .
This guide covers common engine problems encountered with KTA38 and KTA50 engines , their potential causes , and the step-by-step solutions to resolve them effectively.
Parts Catalog for KTA38 Cummins Marine and Industrial Engines
Parts Catalog for KTA50 Cummins Marine and Industrial Engines
Engine Overheating in Cummins KTA38 and KTA50
Possible Causes:
- Low coolant level
– A loss of coolant due to leaks, evaporation, or improper filling can lead to overheating.
- Clogged radiator or heat exchanger
– Dirt, debris, or scaling inside the radiator prevents effective heat dissipation.
- Faulty water pump
– A failing water pump reduces coolant circulation, leading to excessive heat buildup.
- Stuck or failing thermostat
– A malfunctioning thermostat may stay closed, blocking coolant flow.
- Cooling fan failure
– The fan may not engage properly, reducing airflow across the radiator.
Solution:
- Refill Coolant:
- Check the coolant level and refill using Cummins-approved coolant (50/50 mix with distilled water).
- Ensure there are no
air pockets in the system
by properly bleeding it.
- Flush the Radiator and Heat Exchanger:
- Drain the old coolant and use a radiator cleaning solution to remove scale buildup.
- Inspect for
blockages in radiator fins
and clean them using
low-pressure compressed air or water
.
- Inspect and Replace the Water Pump if Needed:
- Check for leaks, worn impellers, or unusual noises from the water pump.
- Replace if the pump shows signs of
seal failure or weak circulation
.
- Test the Thermostat:
- Remove and submerge the thermostat in hot water to see if it opens at the correct temperature (180-200°F).
- Replace if it fails to open.
- Ensure Proper Cooling Fan Operation
- Verify that the fan clutch engages properly when the engine heats up.
- If an
electric fan is used
, check the
fan relay and wiring
for proper function.

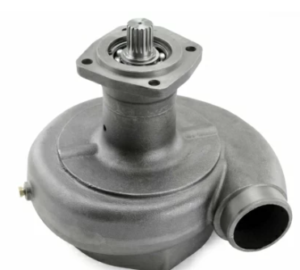

Fresh Water Pump & Related Components for Cummins KTA38 Engine
Fresh Water Pump & Related Components for Cummins KTA50 Engine
Marine Raw Water Pump & Related Components for Cummins KTA38 Engine
Marine Raw Water Pump & Related Components for Cummins KTA50 Engine
Loss of Power in Cummins KTA38 and KTA50
Possible Causes:
- Clogged fuel filters
– Dirt and debris in the filters
restrict fuel flow
, causing power loss.
- Worn injectors
– Aging injectors may
misfire, spray inefficiently, or leak
, reducing fuel efficiency.
- Turbocharger malfunction
– A failing turbo
reduces air intake
, lowering combustion efficiency.
- Air intake restrictions
– Dirty air filters
limit airflow
, resulting in incomplete combustion.
- Faulty fuel pump
– A malfunctioning pump may
fail to deliver adequate fuel pressure
.
Solution:
- Replace Fuel Filters
- Remove and replace primary and secondary fuel filters .
- Prime the fuel system and
bleed air from the lines
after installation.
- Test and Clean Fuel Injectors
- Inspect injectors for carbon buildup or leakage .
- Perform an injector pop test to verify spray patterns and fuel atomization.
- Replace injectors if they fail the test.
- Inspect the Turbocharger
- Check for excessive shaft play or oil leaks in the turbo housing .
- Ensure the wastegate actuator functions properly .
- Replace if the turbo is
worn, producing excessive black smoke, or making abnormal noises
.
- Check the Air Intake System
- Replace clogged air filters to restore airflow.
- Inspect intake pipes for
loose clamps, cracks, or restrictions
.
- Test Fuel Pressure
- Use a fuel pressure gauge to verify that fuel pressure falls within Cummins’ recommended range.
- If pressure is
low
, check for a
failing fuel pump or leaks in the fuel system
.
Injector & Related Components for Cummins KTA38 Engine
Injector & Related Components for Cummins KTA50 Engine
Excessive Black Smoke in Cummins KTA38 and KTA50
Possible Causes:
- Incorrect fuel/air ratio
– Overfueling causes excessive
black smoke due to incomplete combustion
.
- Dirty or clogged air filters
– Restricts airflow, leading to
rich fuel mixtures
.
- Faulty fuel injectors
– Leaking or worn injectors
increase fuel delivery
, resulting in excessive smoke.
- Turbocharger failure
– A failing turbo reduces air supply, leading to incomplete fuel burn.
- EGR system malfunction
– Exhaust gas recirculation problems may contribute to excessive smoke.
Solution:
- Replace Air Filters
- Remove and install a clean Cummins-approved air filter .
- Inspect intake pipes for
blockages or leaks
.
- Check Fuel Injectors
- Perform a fuel injector balance test to detect leaky or faulty injectors .
- Replace injectors that are
worn or fail to atomize fuel properly
.
- Inspect and Service the Turbocharger
- Ensure the compressor wheel spins freely without excessive play.
- Replace a
damaged or leaking turbo
.
- Check the Fuel System for Overfueling
- Ensure fuel pump timing is correct.
- Check for
faulty sensors or regulators
that may be
causing excessive fuel delivery
.
Injector & Related Components for Cummins KTA38 Engine
Injector & Related Components for Cummins KTA50 Engine
Hard Starting or No Start in Cummins KTA38 and KTA50
Possible Causes:
- Weak batteries – A low battery voltage may not provide sufficient cranking power .
- Faulty starter motor – A bad starter may fail to turn the engine over.
- Air in fuel lines – Air pockets in the fuel system can cause misfires or prevent starting .
- Fuel contamination – Water or dirt in fuel prevents proper combustion and ignition .
- Glow plug or preheater malfunction
(if applicable) – In
cold weather
, preheating elements may fail to start the engine.
Solution:
- Check Battery Voltage and Connections
- Test the battery using a multimeter .
- A fully charged 12V battery should read 12.6V+, and a 24V system should read 25.2V+.
- Clean and
tighten battery terminals
to ensure proper electrical contact.
- Inspect the Starter Motor
- Listen for a clicking noise when turning the key (indicates a faulty solenoid).
- Use a starter relay bypass test to check if the motor engages properly.
- Replace the starter motor if it is
burnt out or worn
.
- Bleed Air from the Fuel System
- If the engine ran out of fuel , manually prime the system using the fuel lift pump .
- Open
bleeder valves on the fuel filters
and crank the engine to purge air.
- Drain Water from the Fuel/Water Separator
- Open the fuel/water drain valve and collect fuel in a clear container.
- If water is present, completely drain the separator and replace fuel filters.
- Check Cold-Start Systems (If Equipped)
- If operating in cold conditions , verify that glow plugs or preheaters function correctly.
- Test the
intake air heater
and replace if faulty.

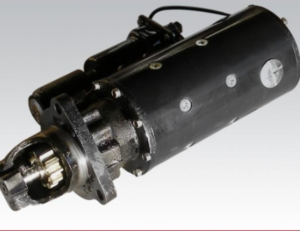

Starter & Related Components for Cummins KTA38 Engine
Starter & Related Components for Cummins KTA50 Engine
Conclusion
Troubleshooting Cummins KTA38 and KTA50 engines requires a methodical approach to diagnosing and resolving issues before they escalate. Regular inspection and maintenance of the cooling, fuel, air intake, and electrical systems ensures long-term reliability and efficiency.
Key Takeaways:
✔ Monitor coolant levels and radiator function to prevent overheating.
✔ Check fuel injectors, turbochargers, and filters to maintain power output.
✔ Inspect air intake systems to reduce excessive black smoke.
✔ Ensure batteries and starter motors are functioning for reliable cold starts.
For high-quality Cummins replacement parts , visit Diesel Pro Power , where we offer premium aftermarket components to keep your KTA38 and KTA50 engines operating at peak performance.
